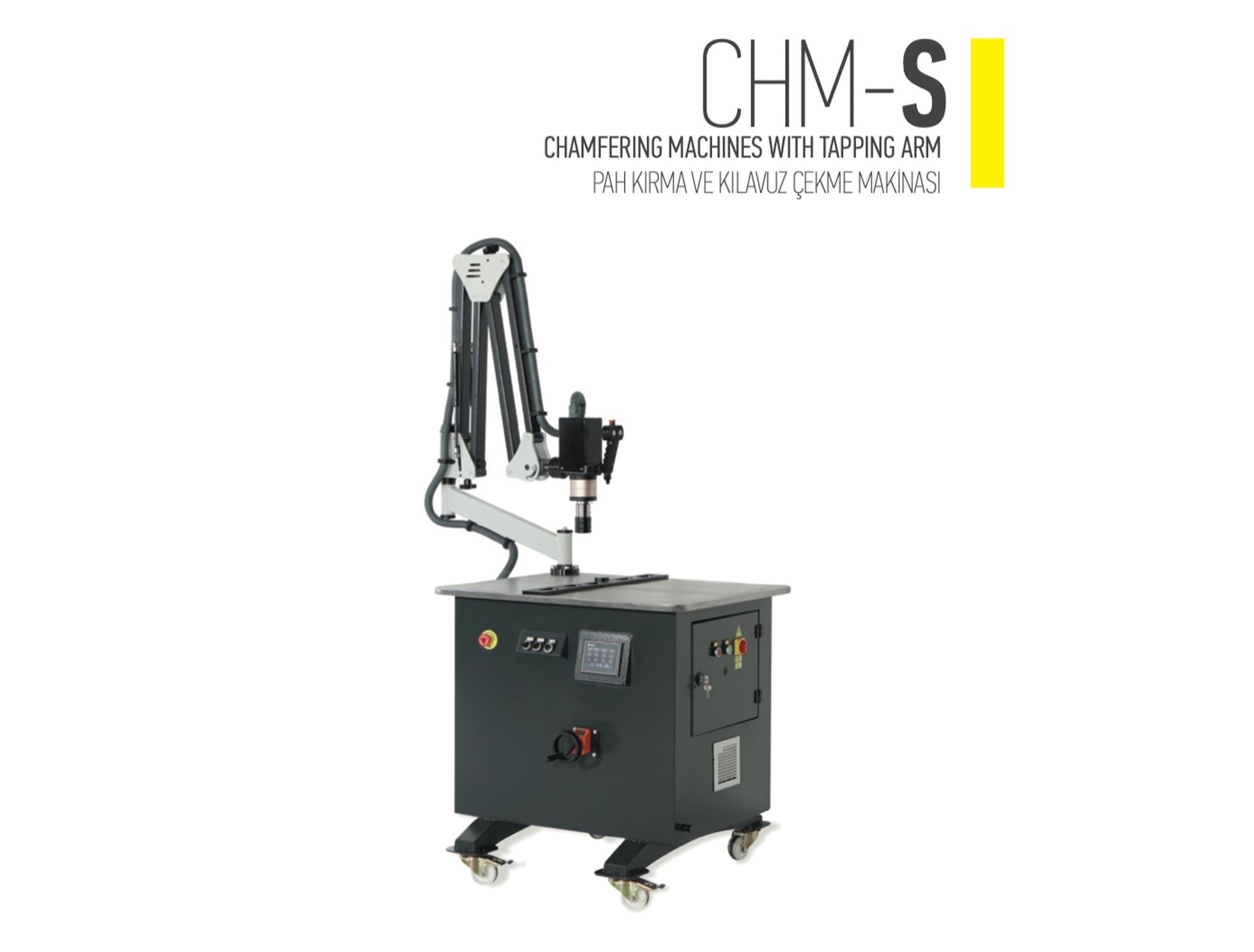

CHM-S Chamfering Machine With Tapping Machine
General Details
- All of our Machines are CE certificated.

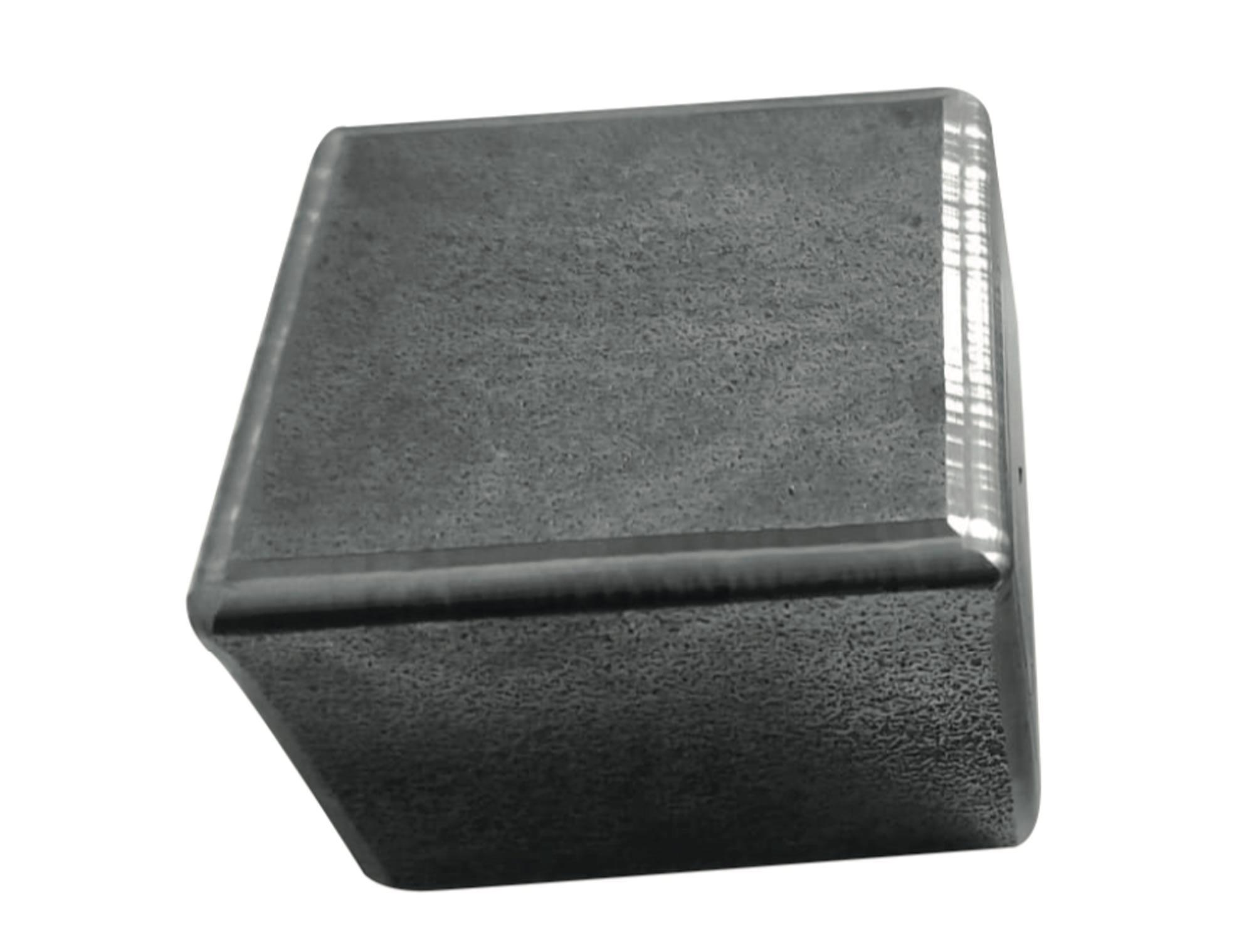

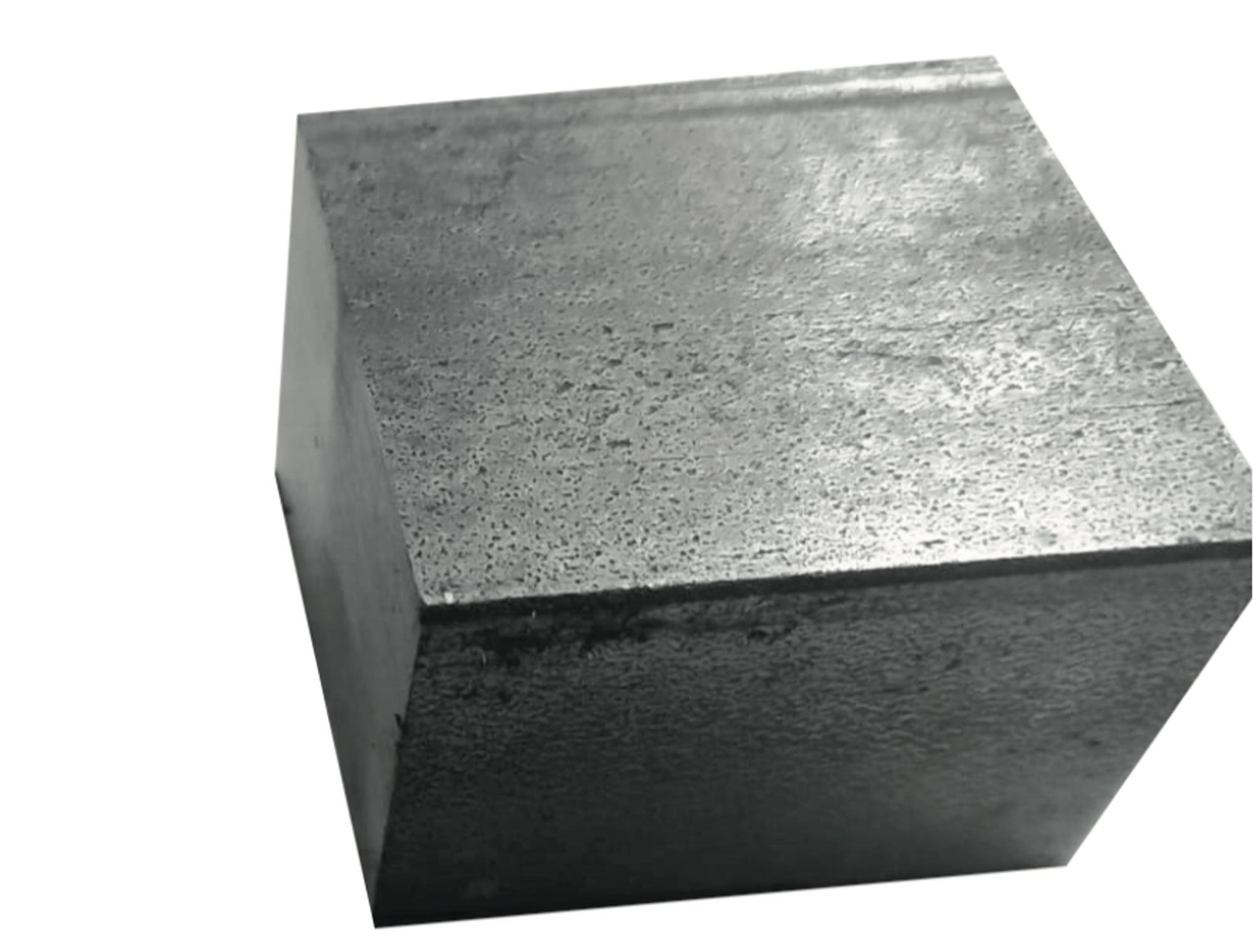

- Different bevel angles with tools.

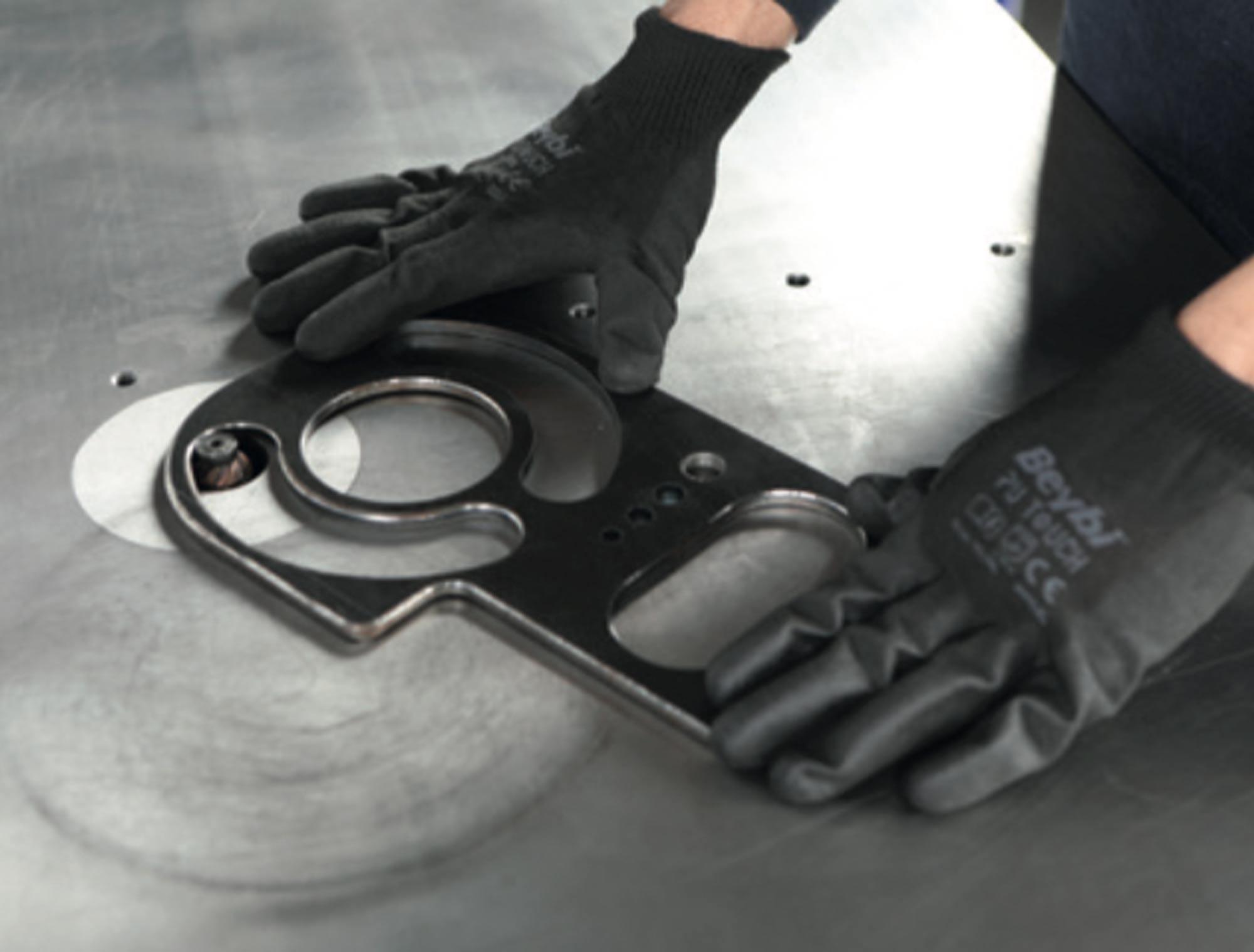

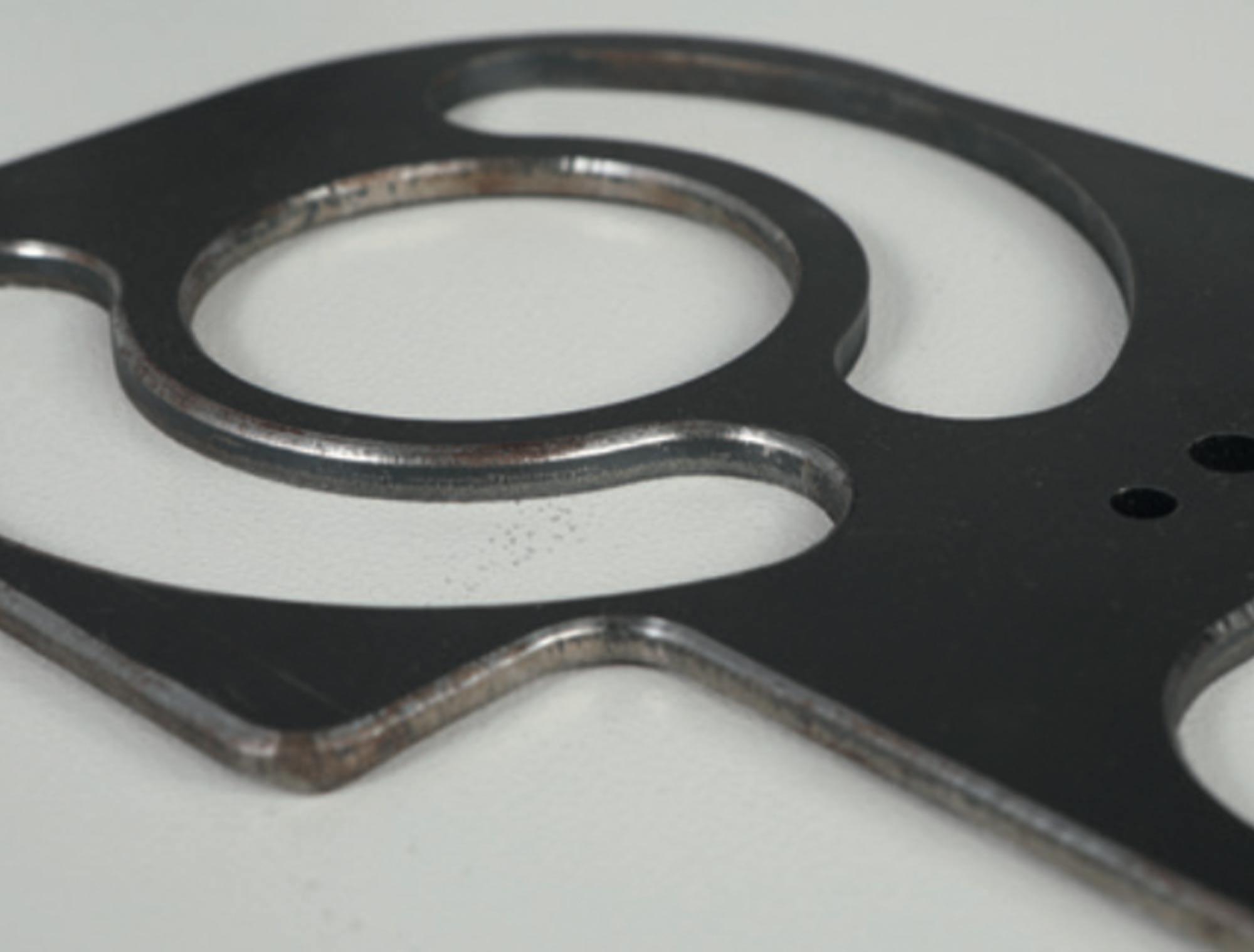

- Guide bar for processing straight workpieces. Bevel work pieces from in- and outside.
- Adjustable torque for different materials. Changeable chamfering angle with different inserts.
- Tapping arm in different capacities on request:
- Arm working diameter of 4000 mm
- Completely precision machined and designed parts Powerfull planetery gear box
- Stainless steel LED buttons Adjustable Tapping depth Automatic Tapping with Pick-Mode Adjustable torque values
- Main safety switch
- Horizontal and vertical head system (optional) MQL Lubrication system (optional)
- Work table (optional)
- TCS Tap Collets (optional)
Technicial Details
| MODEL / MODELS | CHM | CHM-S12 | CHM-S24 | CHM-S36 | CHM-S45 |
| Tapping Capacity / Klavuz Çekme Kapasitesi | M3-M12 | M3-M24 | M5-M36 | M5-M45 | |
| Chamfering Motor Power / Pah Kırma Motor Gücü | 400 - 20.000 rpm | 400 - 20.000 rpm | 400 - 20.000 rpm | 400 - 20.000 rpm | 400 - 20.000 rpm |
| Voltage / Gerilim Voltajı | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz |
| Arm Diameter / Kol Hareket Çapı | Ø4000 mm / 360° | Ø4000 mm / 360° | Ø4000 mm / 360° | Ø4000 mm / 360° | |
| Dimension (mm) / Ölçüler | 125 Kg | 900 x 850 x 1100 | 900 x 850 x 1100 | 900 x 850 x 1100 | 900 x 850 x 1100 |
| Weight / Ağırlık | 165 Kg | 170 Kg | 176 Kg | 190 Kg |
