BDC Beam Drilling Center
General Details

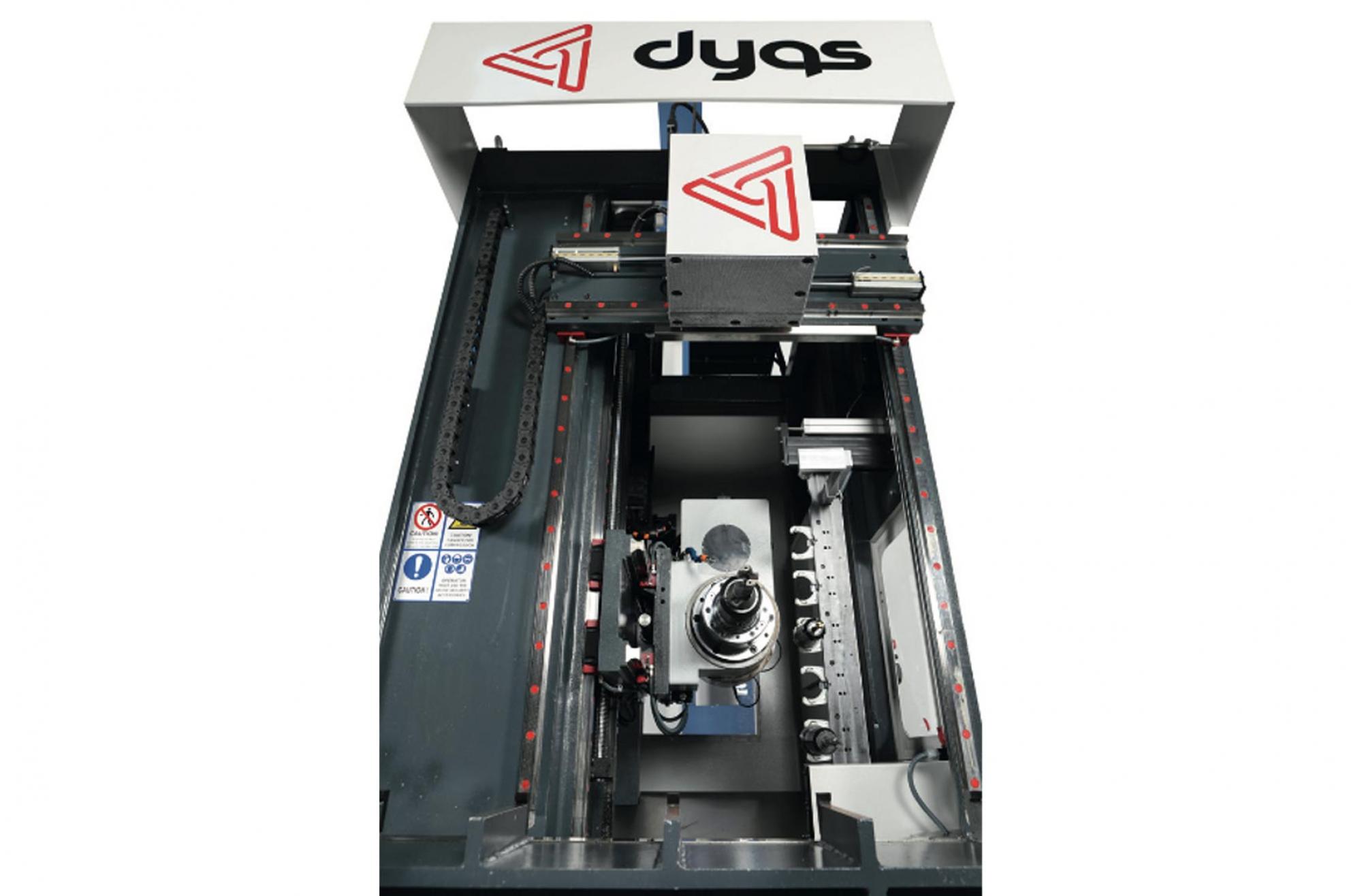

- BDC Beam Drilling Machine is an economic and small footprint metal working machine

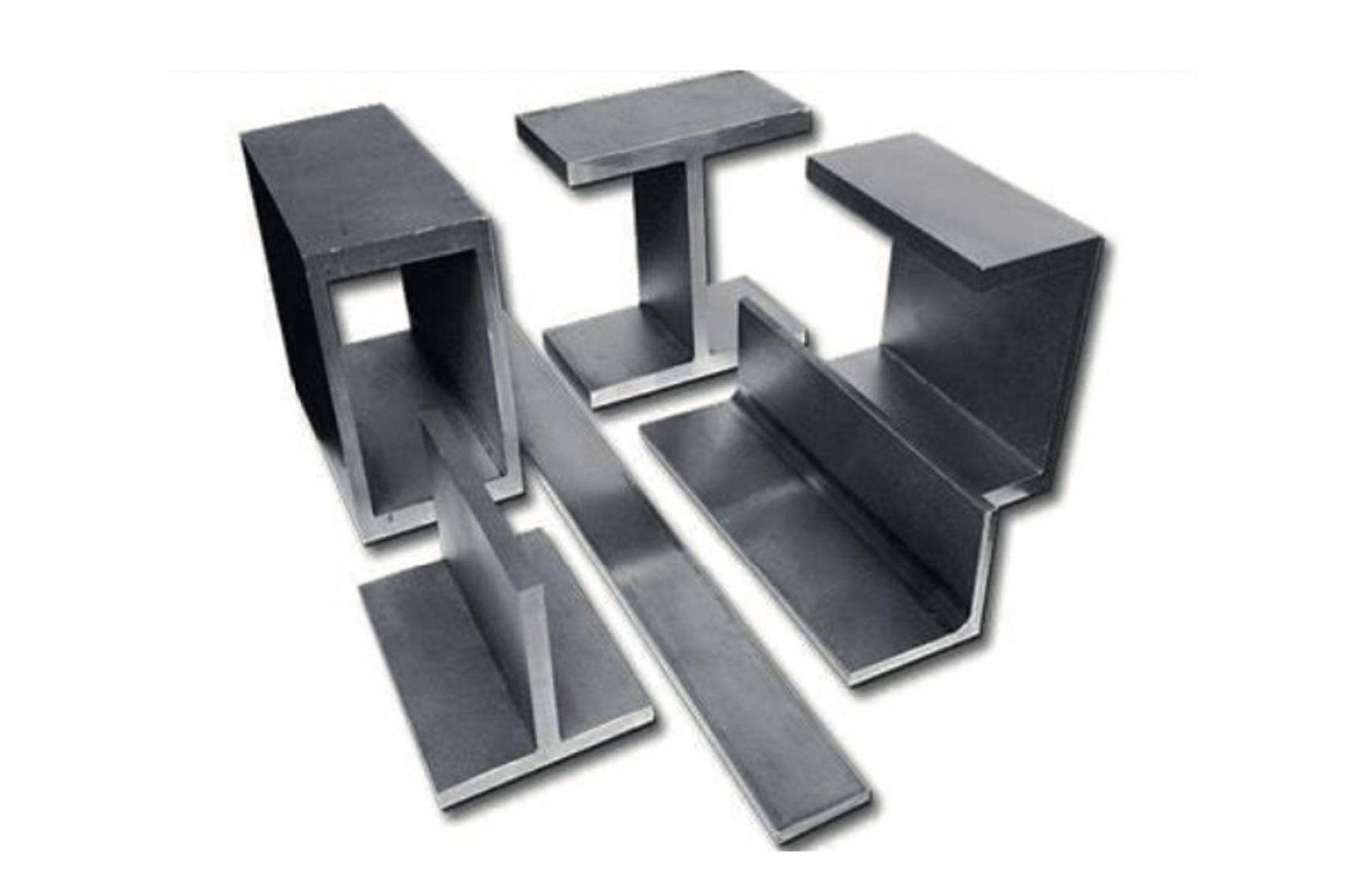

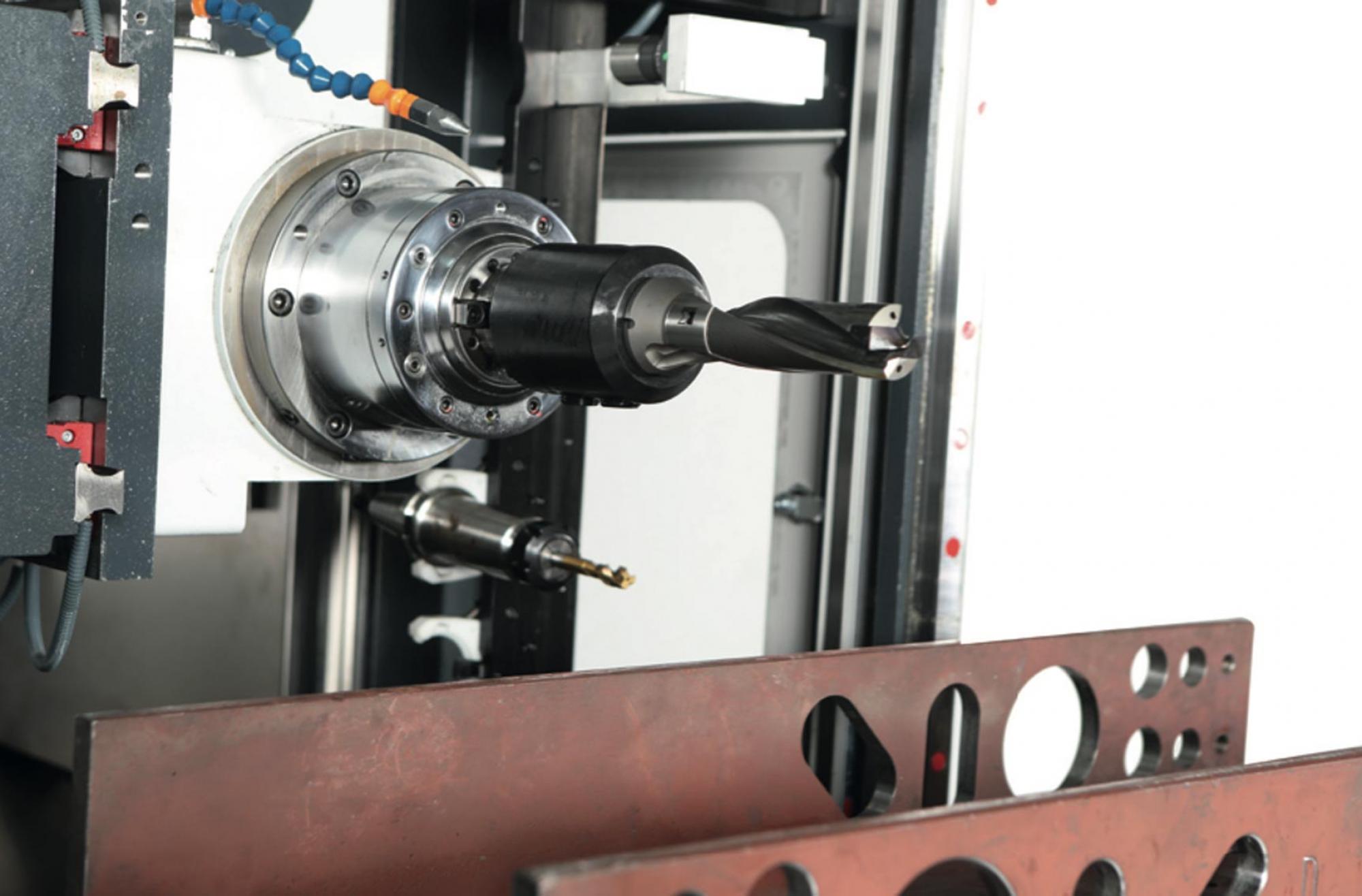

- Except standard beams, you can process machine blade, bracket and parts of different shapes with some auxiliary devices

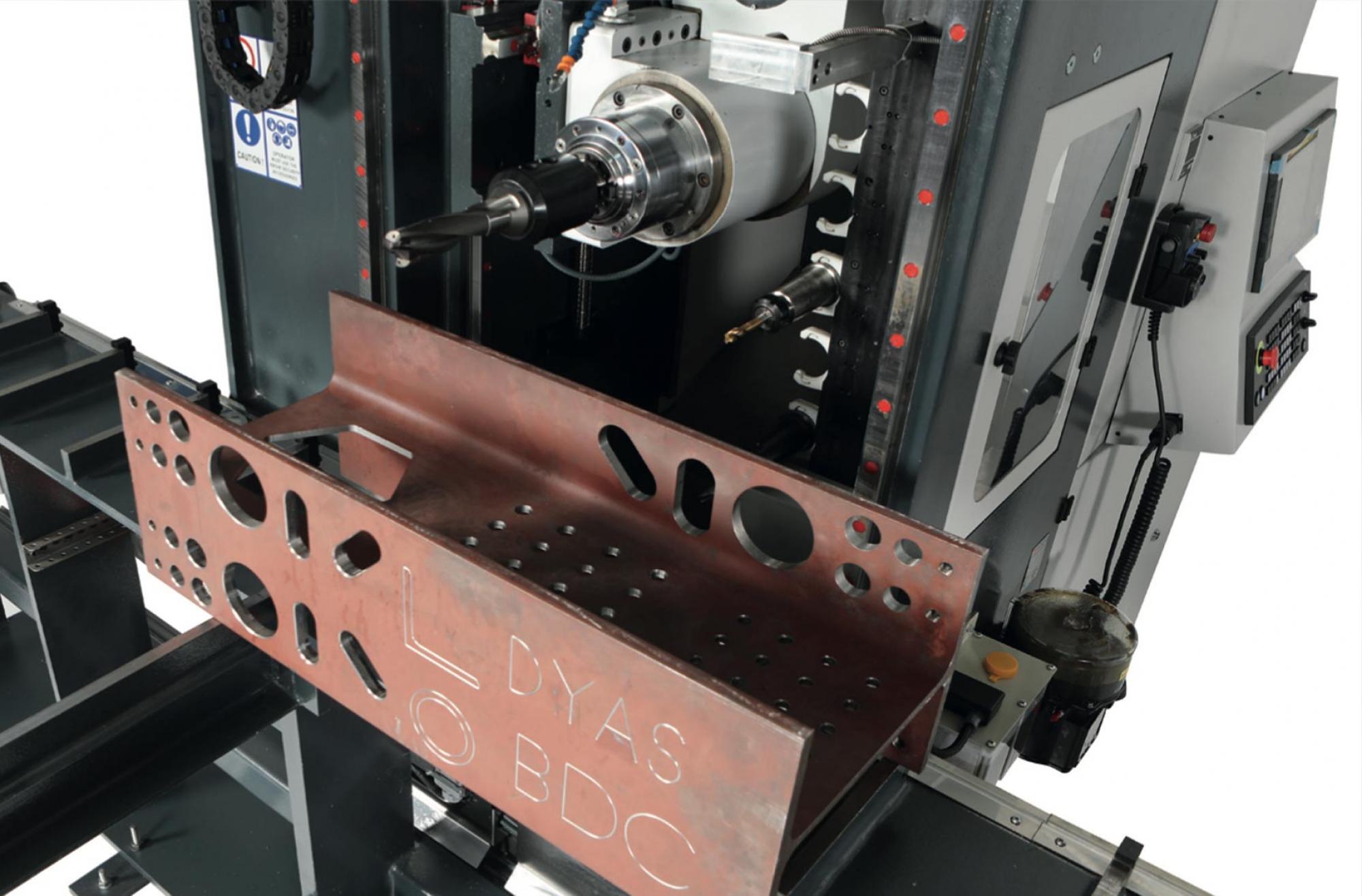

- Drilling , tapping , chamfering , layout marking and milling process can be done easily

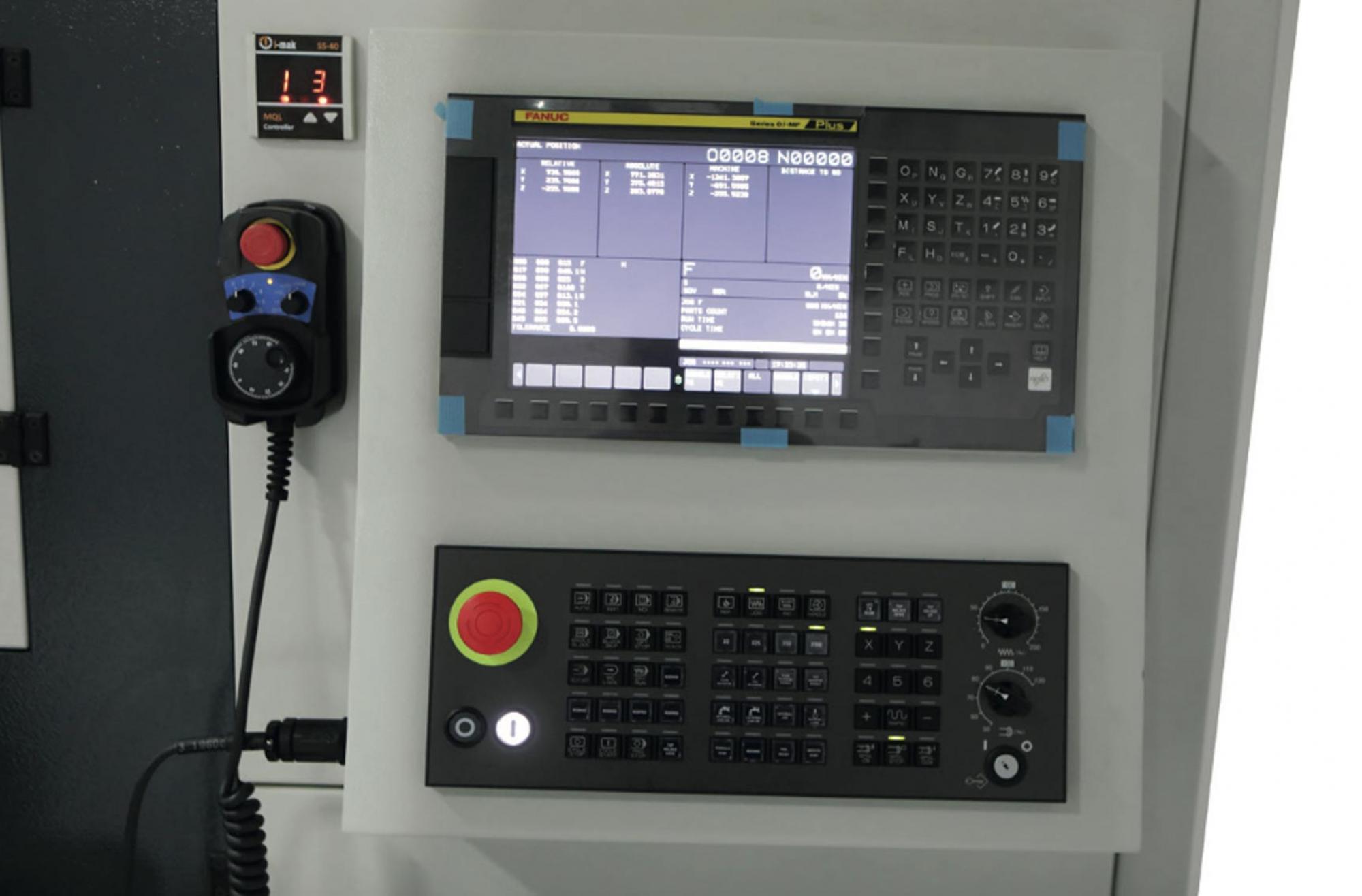

- FANUC CNC control system was used in machine and spare parts can be found all around the world
- Also to do slotting process , there is inside supporting axis in the machine which can work 250 mm

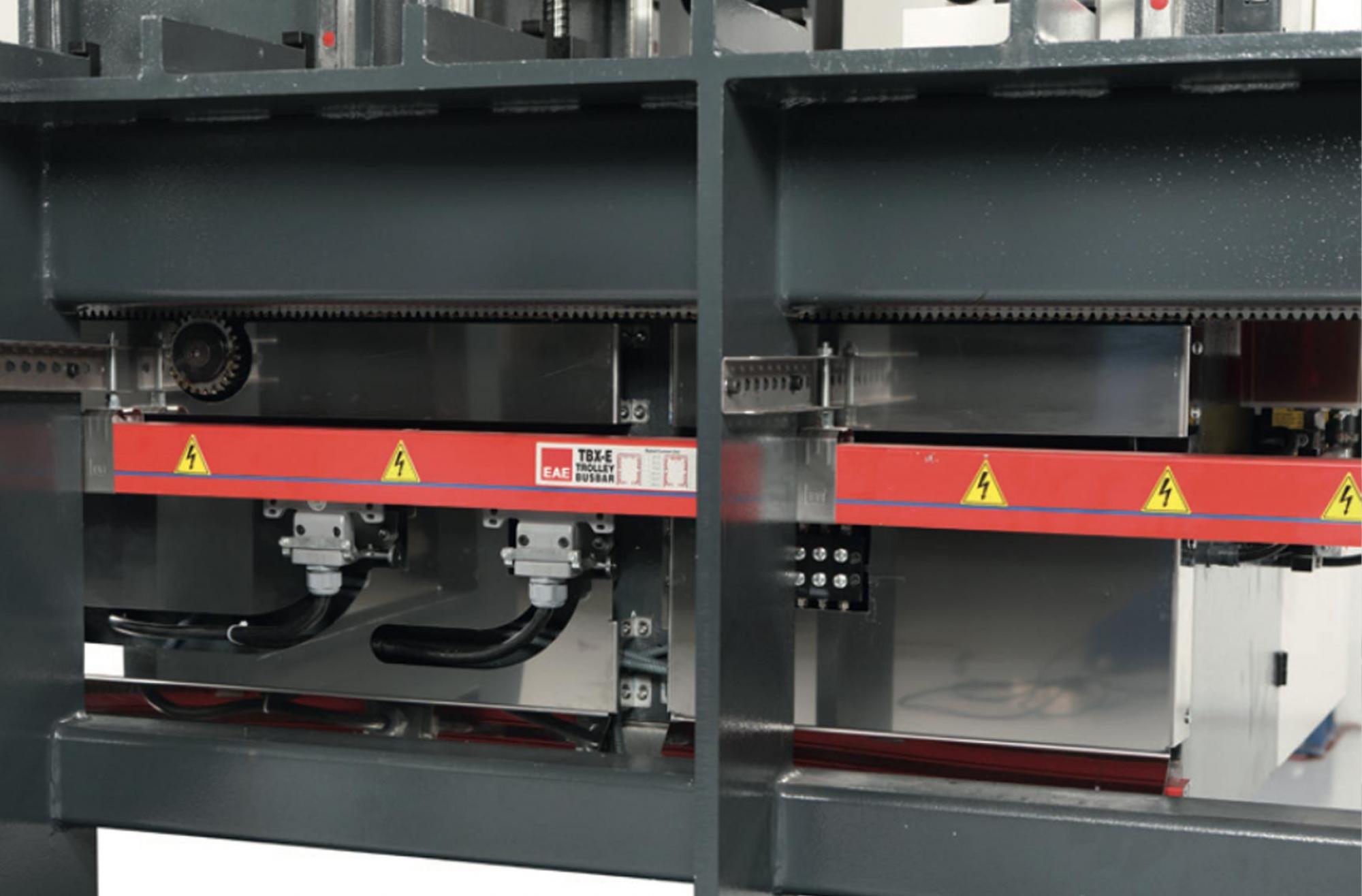

- According to your request , machine length can be produced between 6m and 30 m

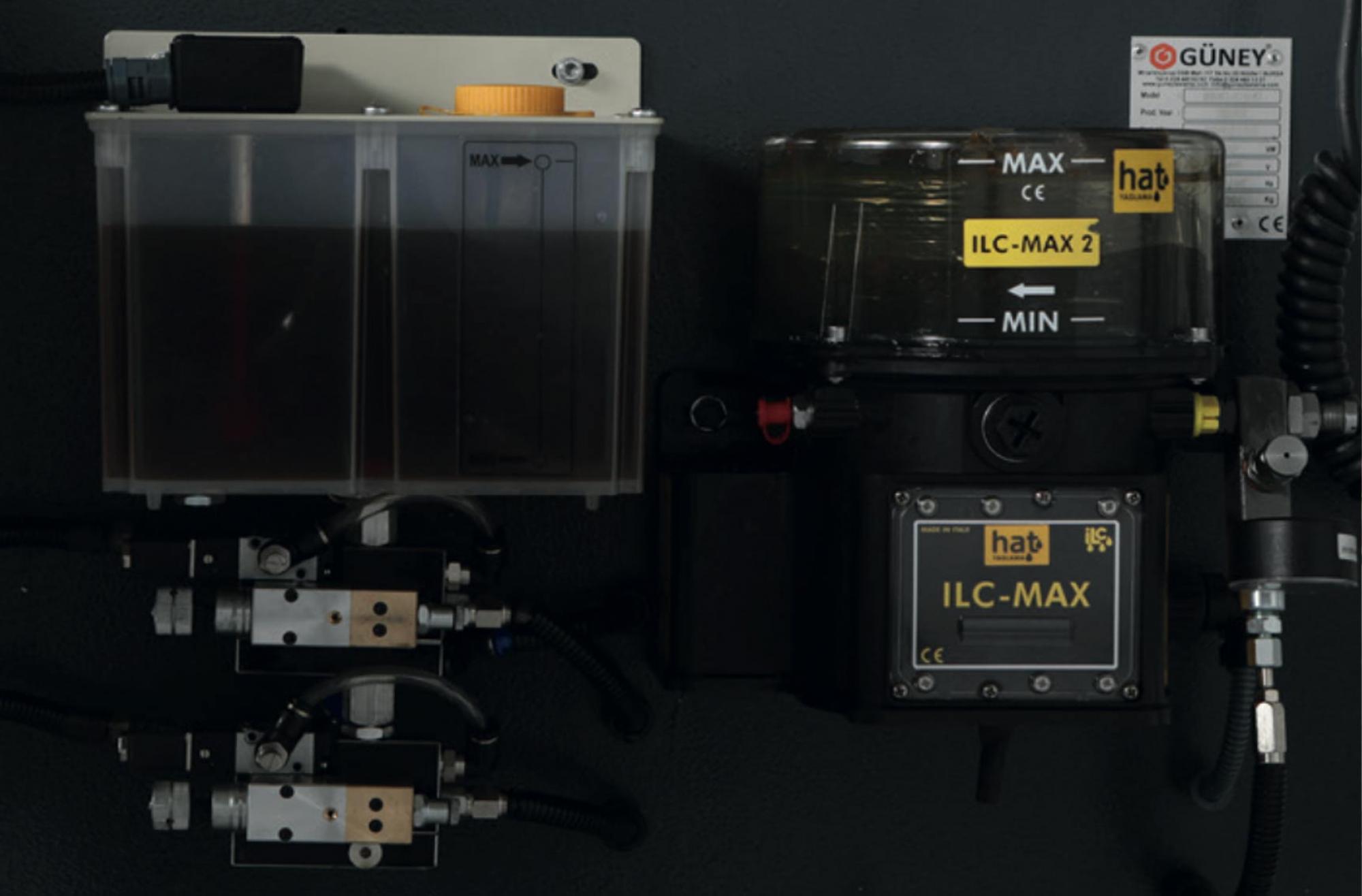

- Linear slides and ball screws are lubricated with automatic central lubrication system and it doesnt need any maintenance
- Thanks to eco-friendly MQL system inside and outside of spindle can be cooled for tools

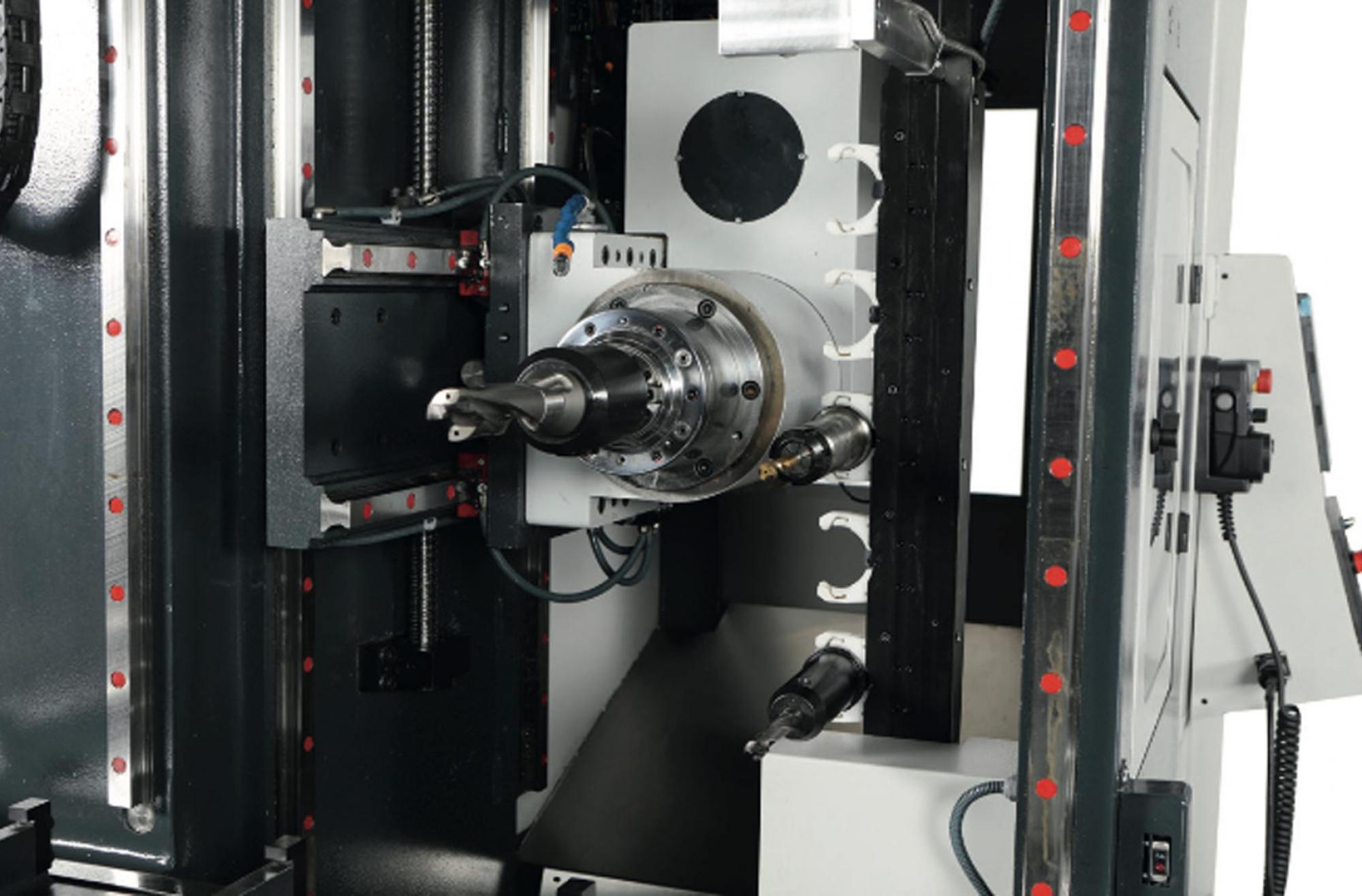

- Automatic Tool Changer (ATC)

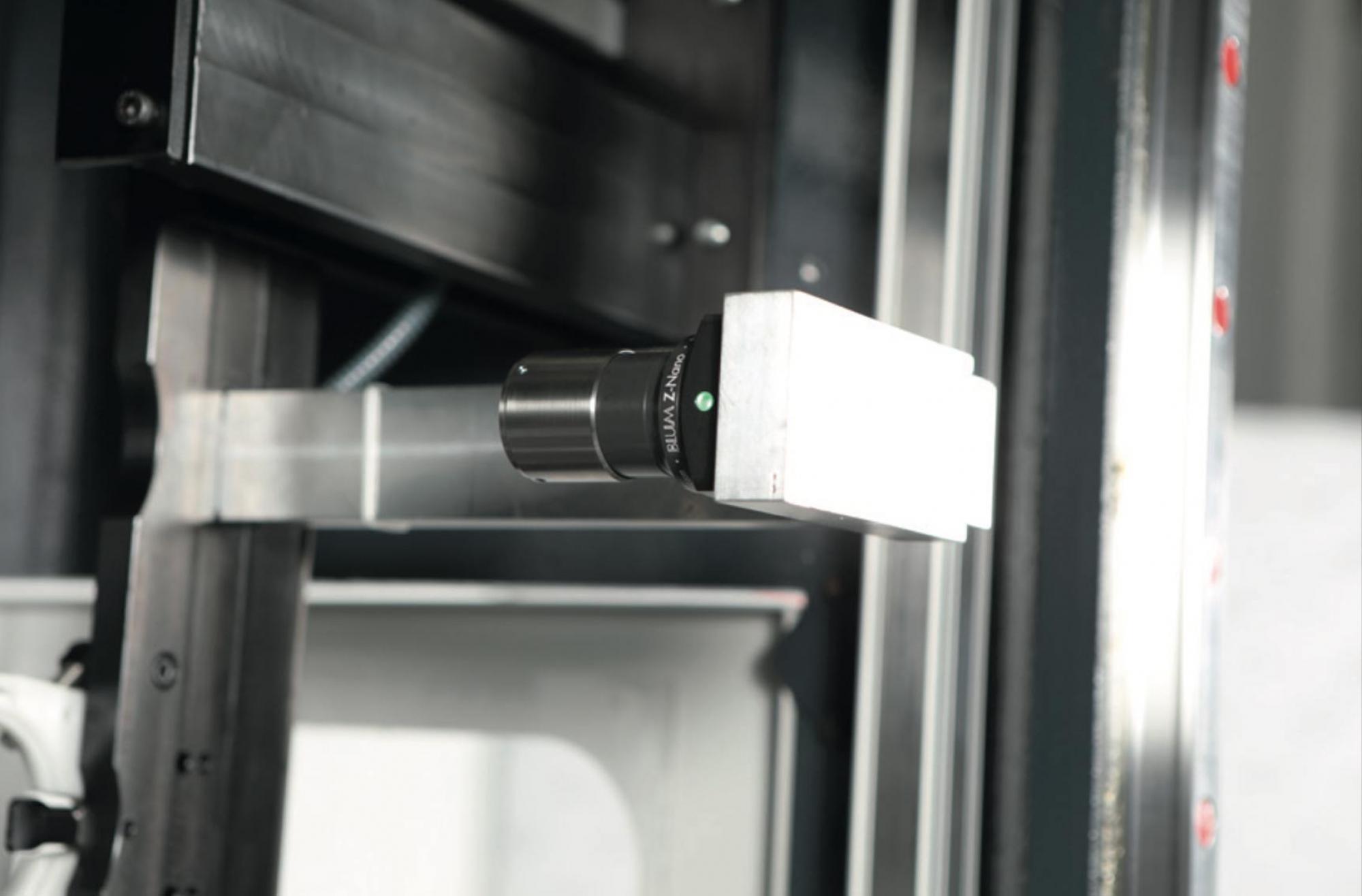

- All measurements are done with RENISHAW brand products
- Thanks to tool measurement system , the problems sourced from tool impact can be removed
- Thanks to climate system in electrical panel , machine can work even in high temperature
- CAM software which makes easier the operator's job
- CE certificated
Technicial Details
| MACHINE TYPE | BDC-800 | BDC-1200 |
| Control Unit / Kontrol Ünitesi | Fanuc Oi | Fanuc Oi |
| Working Length / Çalışma Boyu | 6/12/18/24/30 meter | 6/12/18/24/30 meter |
| Beam Height / Profil Yüksekliği | 50-800 mm | 50-1200 mm |
| Beam Width / profil genişliği | 50-800 mm | 50-1200 mm |
| Workbench Height / Çalışma Sehpası Yüksekliği | 1045 mm | 1045 mm |
| İnternal Axis Movement / İç Eksen Hareketi | 250 mm | 250 mm |
| Machine Length / Uzunluk | 2000 mm + Working Length | 2000 mm + Working Length |
| Machine Width / Genişlik | 2670 mm | 2870 mm |
| Machine Height / Yükseklik | 3900 mm | 4200 mm |
| Machine Weight / Ağırlık | Depends on Size Selection | Depends on Size Selection |
| Tool Holder / Takım Tutucu | BT40 | BT40 |
| Tool Length / Takım Boyu | 320 mm Max. | 320 mm Max. |
| Drilling Capacity / Delme Kapasitesi | Ø5 mm / Ø40 mm | Ø5 mm / Ø40 mm |
| Tapping Capacity / Diş Çekme Kapasitesi Max. | M8 / M27 | M8 / M27 |
| Spindle Speed / Spindel Hızı | 10-4000 rpm | 10-4000 rpm |
| Spindle Power / Spindel Gücü | 15 kW | 15 kW |
| Spindle Torque / Spindel Torku | 144 Nm | 144 Nm |
| Total Power / Toplam Güç | 45 kW | 45 kW |
| Automatic Tool Changer Capacity / Aotomatik Takım Değiştirme Kapasitesi | 5 Pieces | 5 Pieces |
